分度销
|
标准件 |
主尺寸 |
弹簧压力 N ≈ |
最大拧紧扭力 Nm |
重量 |
|||||||||||
|
说明 |
d1 h11 |
d2 |
d3 |
d4 |
e |
l1 |
l2 |
l3 |
l4 |
l5 . |
A/F |
预压 |
压载 |
g |
|
|
3 |
M6 |
14 |
- |
6.9 |
- |
3.5 |
12 |
4.5 |
10 |
6 |
3 |
12 |
2 |
4 |
|
|
3 |
M6x0.75 |
14 |
- |
6.9 |
- |
3.5 |
12 |
4.5 |
10 |
6 |
3 |
12 |
3 |
4 |
|
|
4 |
M6 |
14 |
- |
6.9 |
- |
4 |
12 |
4.5 |
10 |
6 |
3 |
12 |
2 |
4 |
|
|
4 |
M8x1 |
18 |
- |
9.2 |
- |
4.5 |
16 |
6 |
13.5 |
8 |
5 |
24 |
8 |
8 |
|
|
5 |
M8 |
18 |
- |
9.2 |
- |
5 |
16 |
6 |
13.5 |
8 |
5 |
24 |
7 |
8 |
|
|
5 |
M8x1 |
18 |
- |
9.2 |
- |
5 |
16 |
6 |
13.5 |
8 |
5 |
24 |
7 |
10 |
|
|
5 |
M10x1 |
18 |
- |
11.5 |
- |
5 |
16 |
6 |
13.5 |
10 |
5 |
24 |
22 |
15 |
|
|
6 |
M10 |
24 |
- |
11.5 |
- |
6 |
20 |
7.5 |
17 |
10 |
5 |
21 |
15 |
17 |
|
|
6 |
M12x1.5 |
24 |
- |
13.8 |
- |
6 |
20 |
7.5 |
16.5 |
12 |
5 |
21 |
38 |
20 |
|
|
8 |
M12 |
30 |
- |
13.8 |
- |
8 |
24 |
9 |
20.5 |
12 |
6 |
22 |
20 |
30 |
|
|
8 |
M12x1.5 |
30 |
- |
13.8 |
- |
8 |
24 |
9 |
20.5 |
12 |
6 |
22 |
20 |
40 |
|
|
8 |
M16x1.5 |
30 |
- |
19.6 |
- |
8 |
24 |
9 |
20.5 |
17 |
6 |
22 |
80 |
54 |
|
|
10 |
M16x1.5 |
30 |
- |
19.6 |
- |
10 |
26 |
9 |
22.5 |
17 |
4 |
27 |
80 |
55 |
|
|
3 |
M6 |
14 |
- |
6.9 |
- |
3.5 |
12 |
4.5 |
10 |
6 |
3 |
12 |
2 |
5 |
|
|
3 |
M6x0.75 |
14 |
- |
6.9 |
- |
3.5 |
12 |
4.5 |
10 |
6 |
3 |
12 |
3 |
15 |
|
|
4 |
M6 |
14 |
- |
6.9 |
- |
4 |
12 |
4.5 |
10 |
6 |
3 |
12 |
2 |
20 |
|
|
4 |
M8x1 |
18 |
- |
9.2 |
- |
4.5 |
16 |
6 |
13.5 |
8 |
5 |
24 |
8 |
19 |
|
|
5 |
M8 |
18 |
- |
9.2 |
- |
5 |
16 |
6 |
13.5 |
8 |
5 |
24 |
7 |
21 |
|
|
5 |
M8x1 |
18 |
- |
9.2 |
- |
5 |
16 |
6 |
13.5 |
8 |
5 |
24 |
7 |
23 |
|
|
5 |
M10x1 |
18 |
- |
11.5 |
- |
5 |
16 |
6 |
13.5 |
10 |
5 |
24 |
22 |
24 |
|
|
6 |
M10 |
24 |
- |
11.5 |
- |
6 |
20 |
7.5 |
17 |
10 |
5 |
21 |
15 |
27 |
|
|
6 |
M12x1.5 |
24 |
- |
13.8 |
- |
6 |
20 |
7.5 |
16.5 |
12 |
5 |
21 |
38 |
30 |
|
|
8 |
M12 |
30 |
- |
13.8 |
- |
8 |
24 |
9 |
20.5 |
12 |
6 |
22 |
20 |
40 |
|
|
8 |
M12x1.5 |
30 |
- |
13.8 |
- |
8 |
24 |
9 |
20.5 |
12 |
6 |
22 |
20 |
42 |
|
|
8 |
M16x1.5 |
30 |
- |
19.6 |
- |
8 |
24 |
9 |
20.5 |
17 |
6 |
22 |
80 |
50 |
|
|
10 |
M16x1.5 |
30 |
- |
19.6 |
- |
10 |
26 |
9 |
22.5 |
17 |
4 |
27 |
80 |
55 |
|
|
3 |
M6 |
- |
12 |
6.9 |
30 |
3.5 |
12 |
4.5 |
10 |
6 |
3 |
12 |
2 |
4 |
|
|
3 |
M6x0.75 |
- |
12 |
6.9 |
30 |
3.5 |
12 |
4.5 |
10 |
6 |
3 |
12 |
3 |
5 |
|
|
4 |
M6 |
- |
12 |
6.9 |
30.5 |
4 |
12 |
4.5 |
10 |
6 |
3 |
12 |
2 |
4 |
|
|
4 |
M8x1 |
- |
16 |
9.2 |
39.5 |
4.5 |
16 |
6 |
13.5 |
8 |
5 |
24 |
8 |
10 |
|
|
5 |
M8 |
- |
16 |
9.2 |
40 |
5 |
16 |
6 |
13.5 |
8 |
5 |
24 |
7 |
11 |
|
|
5 |
M8x1 |
- |
16 |
9.2 |
40 |
5 |
16 |
6 |
13.5 |
8 |
5 |
24 |
7 |
13 |
|
|
5 |
M10x1 |
- |
18 |
11.5 |
42.5 |
5 |
16 |
6 |
13.5 |
10 |
5 |
24 |
22 |
14 |
|
|
6 |
M10 |
- |
18 |
11.5 |
49 |
6 |
20 |
7.5 |
17 |
10 |
5 |
21 |
15 |
17 |
|
|
6 |
M12x1.5 |
- |
21 |
13.8 |
52 |
6 |
20 |
7.5 |
16.5 |
12 |
5 |
21 |
38 |
26 |
|
|
8 |
M12 |
- |
21 |
13.8 |
59 |
8 |
24 |
9 |
20.5 |
12 |
6 |
22 |
20 |
31 |
|
|
8 |
M12x1.5 |
- |
21 |
13.8 |
59 |
8 |
24 |
9 |
20.5 |
12 |
6 |
22 |
20 |
40 |
|
|
8 |
M16x1.5 |
- |
25 |
19.6 |
63.5 |
8 |
24 |
9 |
20.5 |
17 |
6 |
22 |
80 |
50 |
|
|
10 |
M16x1.5 |
- |
25 |
19.6 |
67.5 |
10 |
26 |
9 |
22.5 |
17 |
4 |
27 |
80 |
55 |
|
|
3 |
M6 |
- |
12 |
6.9 |
30 |
3.5 |
12 |
4.5 |
10 |
6 |
3 |
12 |
2 |
5 |
|
|
3 |
M6x0.75 |
- |
12 |
6.9 |
30 |
3.5 |
12 |
4.5 |
10 |
6 |
3 |
12 |
3 |
5 |
|
|
4 |
M6 |
- |
12 |
6.9 |
30.5 |
4 |
12 |
4.5 |
10 |
6 |
3 |
12 |
2 |
7 |
|
|
4 |
M8x1 |
- |
16 |
9.2 |
39.5 |
4.5 |
12 |
4.5 |
13.5 |
8 |
5 |
24 |
8 |
10 |
|
|
5 |
M8 |
- |
16 |
9.2 |
40 |
5 |
16 |
6 |
13.5 |
8 |
5 |
24 |
20 |
12 |
|
|
5 |
M8x1 |
- |
16 |
9.2 |
40 |
5 |
16 |
6 |
13.5 |
8 |
5 |
24 |
20 |
15 |
|
|
5 |
M10x1 |
- |
18 |
11.5 |
42.5 |
5 |
16 |
6 |
13.5 |
10 |
5 |
24 |
22 |
23 |
|
|
6 |
M10 |
- |
18 |
11.5 |
49 |
6 |
20 |
7.5 |
17 |
10 |
5 |
21 |
15 |
23 |
|
|
6 |
M12x1.5 |
- |
21 |
13.8 |
52 |
6 |
20 |
7.5 |
16.5 |
12 |
5 |
21 |
38 |
30 |
|
|
8 |
M12 |
- |
21 |
13.5 |
59 |
8 |
24 |
9 |
20.5 |
12 |
6 |
22 |
20 |
43 |
|
|
8 |
M12x1.5 |
- |
21 |
13.8 |
59 |
8 |
24 |
9 |
20.5 |
12 |
6 |
22 |
20 |
44 |
|
|
8 |
M10x1.5 |
- |
25 |
19.6 |
63.5 |
8 |
24 |
9 |
20.5 |
17 |
6 |
22 |
80 |
45 |
|
|
10 |
M16x1.5 |
- |
25 |
19.6 |
67.5 |
10 |
26 |
9 |
22.5 |
17 |
4 |
27 |
50 |
55 |
|
Technical information
镀锌钢。
AISI303不锈钢。
建议安装于公差为+0.03/+0.08的孔内。
镀锌钢。
不锈钢。
高弹性聚酰胺基（PA）高科技聚合体，黑色，亚光饰面。耐溶剂、机油、油脂以及其它化学溶剂。

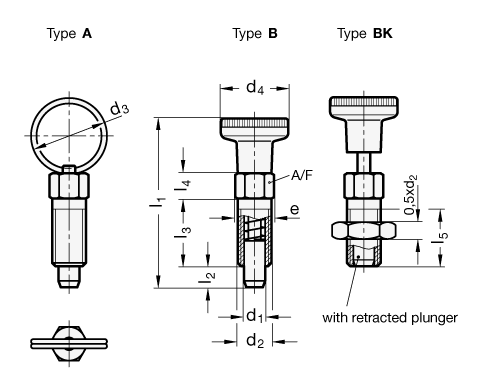

- A型：带拉环，无锁紧螺母，符合ISO 4035/ ISO 8675。
- AK型：带拉环及锁紧螺母。
- B型：带捏手，无锁紧螺母，符合ISO 4035/ISO 8675 。
- BK型：带捏手及锁紧螺母。

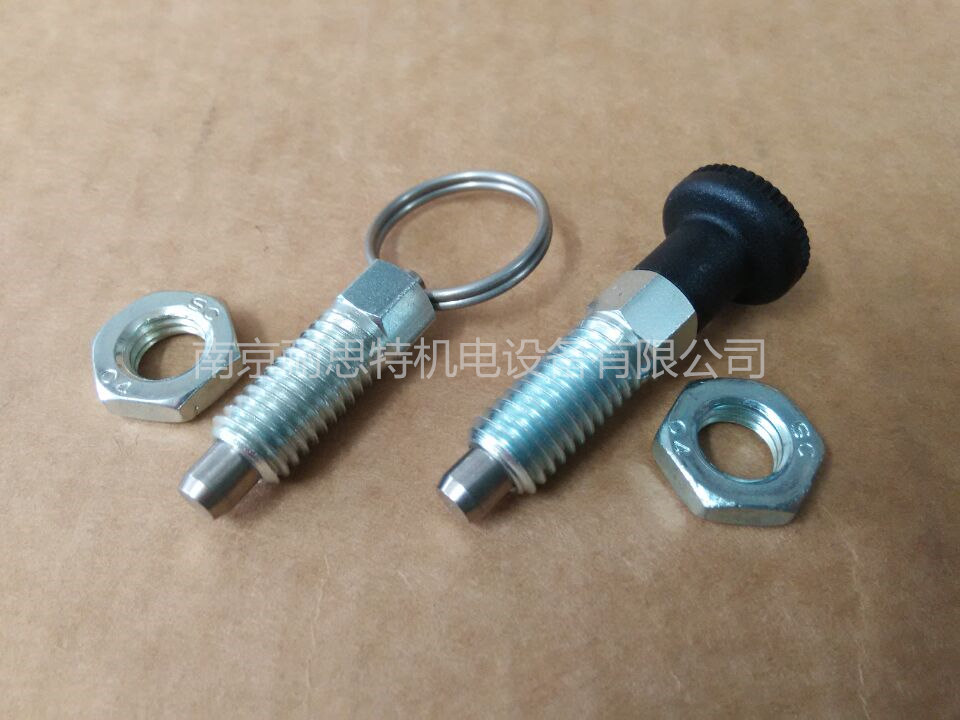

GN717型分度销适用于需要定位操作的场合。
GN717是一个相对成本较低的分度销系列，其突出优势在于尺寸小巧。适用于无需高精分度的场合。
由于GN717型分度销尺寸相对小巧，建议在安装过程中遵照下表所列最大拧紧扭矩进行操作。
