VCT.p
带彩色中心帽的凸轮旋钮
ELESA 原创设计
|

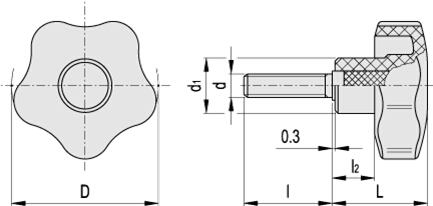

标准件 |
主尺寸 |
螺杆 |
C # |
重量 |
|||||
|
代码 |
说明 |
D |
L |
d1 |
l2 |
d 6g |
l |
[Nm] |
g |
|
VCT.32 p-M5x20-* |
32 |
23 |
15 |
10 |
M5 |
20 |
6 |
13 |
|
|
VCT.32 p-M6x16-* |
32 |
23 |
15 |
10 |
M6 |
16 |
8 |
13 |
|
|
VCT.32 p-M6x20-* |
32 |
23 |
15 |
10 |
M6 |
20 |
8 |
14 |
|
|
VCT.32 p-M6x25-* |
32 |
23 |
15 |
10 |
M6 |
25 |
8 |
15 |
|
|
VCT.32 p-M6x30-* |
32 |
23 |
15 |
10 |
M6 |
30 |
8 |
16 |
|
|
VCT.32 p-M6x40-* |
32 |
23 |
15 |
10 |
M6 |
40 |
8 |
18 |
|
|
VCT.32 p-M8x16-* |
32 |
23 |
15 |
10 |
M8 |
16 |
8 |
14 |
|
|
VCT.32 p-M8x20-* |
32 |
23 |
15 |
10 |
M8 |
20 |
8 |
18 |
|
|
VCT.32 p-M8x30-* |
32 |
23 |
15 |
10 |
M8 |
30 |
8 |
21 |
|
|
VCT.32 p-M8x40-* |
32 |
23 |
15 |
10 |
M8 |
40 |
8 |
24 |
|
|
VCT.40 p-M6x20-* |
40 |
27 |
17 |
12 |
M6 |
20 |
13 |
18 |
|
|
VCT.40 p-M6x25-* |
40 |
27 |
17 |
12 |
M6 |
25 |
13 |
19 |
|
|
VCT.40 p-M6x30-* |
40 |
27 |
17 |
12 |
M6 |
30 |
13 |
20 |
|
|
VCT.40 p-M8x16-* |
40 |
27 |
17 |
12 |
M8 |
16 |
16 |
23 |
|
|
VCT.40 p-M8x20-* |
40 |
27 |
17 |
12 |
M8 |
20 |
16 |
24 |
|
|
VCT.40 p-M8x25-* |
40 |
27 |
17 |
12 |
M8 |
25 |
16 |
26 |
|
|
VCT.40 p-M8x30-* |
40 |
27 |
17 |
12 |
M8 |
30 |
16 |
27 |
|
|
VCT.40 p-M8x35-* |
40 |
27 |
17 |
12 |
M8 |
35 |
16 |
28 |
|
|
VCT.40 p-M8x40-* |
40 |
27 |
17 |
12 |
M8 |
40 |
16 |
30 |
|
|
VCT.40 p-M8x45-* |
40 |
27 |
17 |
12 |
M8 |
45 |
16 |
32 |
|
|
VCT.40 p-M8x55-* |
40 |
27 |
17 |
12 |
M8 |
55 |
16 |
36 |
|
|
VCT.50 p-M8x16-* |
50 |
32 |
19 |
14 |
M8 |
16 |
16 |
26 |
|
|
VCT.50 p-M8x20-* |
50 |
32 |
19 |
14 |
M8 |
20 |
16 |
28 |
|
|
VCT.50 p-M8x25-* |
50 |
32 |
19 |
14 |
M8 |
25 |
16 |
30 |
|
|
VCT.50 p-M8x30-* |
50 |
32 |
19 |
14 |
M8 |
30 |
16 |
31 |
|
|
VCT.50 p-M8x40-* |
50 |
32 |
19 |
14 |
M8 |
40 |
16 |
33 |
|
|
VCT.50 p-M8x50-* |
50 |
32 |
19 |
14 |
M8 |
50 |
16 |
35 |
|
|
VCT.50 p-M10x20-* |
50 |
32 |
19 |
14 |
M10 |
20 |
23 |
36 |
|
|
VCT.50 p-M10x30-* |
50 |
32 |
19 |
14 |
M10 |
30 |
23 |
41 |
|
|
VCT.50 p-M10x40-* |
50 |
32 |
19 |
14 |
M10 |
40 |
23 |
46 |
|
|
VCT.50 p-M10x50-* |
50 |
32 |
19 |
14 |
M10 |
50 |
23 |
51 |
|
|
VCT.63 p-M10x20-* |
63 |
37 |
22 |
16 |
M10 |
20 |
37 |
54 |
|
|
VCT.63 p-M10x30-* |
63 |
37 |
22 |
16 |
M10 |
30 |
37 |
59 |
|
|
VCT.63 p-M10x40-* |
63 |
37 |
22 |
16 |
M10 |
40 |
37 |
64 |
|
|
VCT.63 p-M10x50-* |
63 |
37 |
22 |
16 |
M10 |
50 |
37 |
69 |
|
|
VCT.63 p-M10x60-* |
63 |
37 |
22 |
16 |
M10 |
60 |
37 |
74 |
|
|
VCT.63 p-M12x30-* |
63 |
37 |
22 |
16 |
M12 |
30 |
46 |
67 |
|
|
VCT.63 p-M12x50-* |
63 |
37 |
22 |
16 |
M12 |
50 |
46 |
79 |
|
|
VCT.74 p-M12x30-* |
74 |
43.5 |
26 |
22 |
M12 |
30 |
68 |
86 |
|
|
VCT.74 p-M12x50-* |
74 |
43.5 |
26 |
22 |
M12 |
50 |
68 |
98 |
|
|
VCT.74 p-M12x70-* |
74 |
43.5 |
26 |
22 |
M12 |
70 |
68 |
110 |
|
|
VCT.74 p-M14x50-* |
74 |
43.5 |
26 |
22 |
M14 |
50 |
78 |
106 |
|
|
VCT.95 p-M16x50-* |
95 |
46 |
32 |
21 |
M16 |
50 |
138 |
175 |
|
|
标准件 |
主尺寸 |
螺杆 |
C # |
重量 |
|||||
|
代码 |
说明 |
D |
L |
d1 |
l2 |
d6g |
l |
[Nm] |
g |
|
VCT.25 p-M4x6-C9 |
25 |
19 |
13 |
8 |
M4 |
6 |
5 |
5 |
|
|
VCT.25 p-M4x10-C9 |
25 |
19 |
13 |
8 |
M4 |
10 |
5 |
6 |
|
|
VCT.25 p-M5x10-C9 |
25 |
19 |
13 |
8 |
M5 |
10 |
6 |
7 |
|
|
VCT.25 p-M5x16-C9 |
25 |
19 |
13 |
8 |
M5 |
16 |
6 |
8 |
|
|
VCT.25 p-M5x20-C9 |
25 |
19 |
13 |
8 |
M5 |
20 |
6 |
9 |
|
|
VCT.25 p-M5x25-C9 |
25 |
19 |
13 |
8 |
M5 |
25 |
6 |
10 |
|
|
VCT.25 p-M6x10-C9 |
25 |
19 |
13 |
8 |
M6 |
10 |
6 |
8 |
|
|
VCT.25 p-M6x16-C9 |
25 |
19 |
13 |
8 |
M6 |
16 |
6 |
9 |
|
|
VCT.25 p-M6x20-C9 |
25 |
19 |
13 |
8 |
M6 |
20 |
6 |
10 |
|
|
VCT.25 p-M6x30-C9 |
25 |
19 |
13 |
8 |
M6 |
30 |
6 |
12 |
|
Technical information
高弹性聚丙烯基（PP）高科技聚合物。耐溶剂、机油、油脂以及其它化学溶剂。
黑色，亚光饰面。
高科技聚合物，亚光饰面。
订货时，请在代码及型号中加入色号索引（C9，…，C6）。
如订货量充足，可根据客户要求提供其它颜色或定制图形符号、标记或文字。
镀锌钢螺杆，带倒角平头，符合UNI表947：ISO4753规定。
(参见038产品目录，A11页)。
